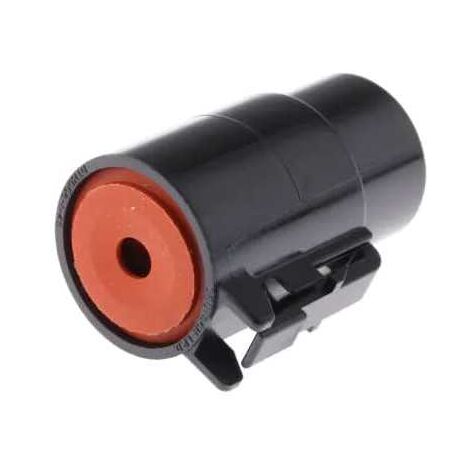

Connecteur Series DTHD male size 4
15 € offerts dès 250 €
avec le code
avec le code
Produit similaire livré par
Lot de 20 Connecteurs de Câble Remplis des Résines pour Robot Tondeuse Automower
12,24 €
32
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 58958
Code Producteur: DTHD06-1-4S
Producteur: Deutsch
Vendu au pièce
Product Category: Automotive Connectors
Number of positions: 1 position
Gender: male
Mounting Style: Cable Mount / Free Hanging
Termination style: crimp
Maximum wire diameter: 4 AWG
Series: DTHD
Application: from wire to wire
Fixing hole diameter: 6 mm
Brand: DEUTSCH
Black colour
Rated current: 100 A
Flammability classification: UL 94 V-0
Height: 27.33 mm
Housing material: polyetherimide
Degree of protection: IP67
Insulation: isolated
Length: 38.05 mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Rated voltage: 250V
Width: 22.23 mm
Conductor size range: 4 AWG
Unit weight: 11 g
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: DTHD
Ampérage: 100A
Matériel: Plastique
Couleur: Noir
Protection IP: IP67
Température de fonctionnement: -55°C à +125°C
Dimensions: 38.05x22.23x27.33 (L x W x H)
Inflammabilité: 94V-0
Voltage: 250V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 1
Nombre de rangées: 1
Orientation: 180°
Code Producteur: DTHD06-1-4S
Producteur: Deutsch
Vendu au pièce
Product Category: Automotive Connectors
Number of positions: 1 position
Gender: male
Mounting Style: Cable Mount / Free Hanging
Termination style: crimp
Maximum wire diameter: 4 AWG
Series: DTHD
Application: from wire to wire
Fixing hole diameter: 6 mm
Brand: DEUTSCH
Black colour
Rated current: 100 A
Flammability classification: UL 94 V-0
Height: 27.33 mm
Housing material: polyetherimide
Degree of protection: IP67
Insulation: isolated
Length: 38.05 mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Rated voltage: 250V
Width: 22.23 mm
Conductor size range: 4 AWG
Unit weight: 11 g
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: DTHD
Ampérage: 100A
Matériel: Plastique
Couleur: Noir
Protection IP: IP67
Température de fonctionnement: -55°C à +125°C
Dimensions: 38.05x22.23x27.33 (L x W x H)
Inflammabilité: 94V-0
Voltage: 250V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 1
Nombre de rangées: 1
Orientation: 180°
Caractéristiques
- MarqueDEUTSCH
- Indice de protectionIP67
- Intensité maximale100 A
- Longueur3.8 cm
- MatièresPlastique
- Poids11 g
- Tension électrique250 V
- Réf. ManoManoME55797857
- MMID557886438282
- Réf. fabricantDTHD06-1-4S
