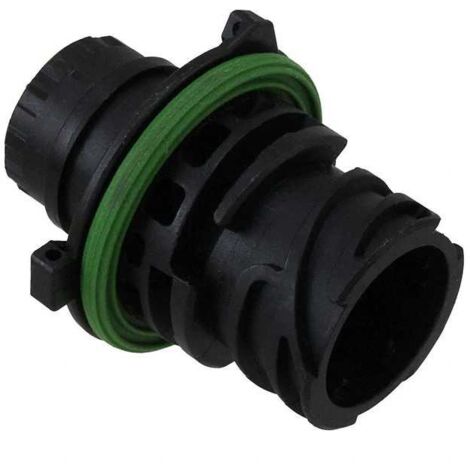

Connecteur Series 1,5MM HSG Femelle 7 Voies
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Lot de 20 Connecteurs de Câble Remplis des Résines pour Robot Tondeuse Automower
11,62 €
33
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 48864
Code Producteur: 1718230-1
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Male Terminal Housing
Connector system: wire to wire
Main lock function: on the terminal
Configuration features
Number of positions: 7
Electrical characteristics:
Operating voltage (VDC): 48
Nominal voltage architecture (V): 12, 24, 42, 48
Characteristics of the body
Body material: PBT GF
Main product color: black
Contact characteristics
Mating tongue width: 1.5 mm [.059 in]
Housing features
Centerline (pitch): 11.4 mm [.449 in]
Dimensions
Product height: 39.26 mm [1.546 in]
Product length: 39.2 mm [1.546 in]
Product width: 44 mm [1,732 in]
Terms of use
Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248
Operating temperature range: -40 - 120 ° C [-40 - 248 ° F]
UL flammability classification: UL 94HB
Degree of protection: IP67, IP6K9K
Code Producteur: 1718230-1
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Male Terminal Housing
Connector system: wire to wire
Main lock function: on the terminal
Configuration features
Number of positions: 7
Electrical characteristics:
Operating voltage (VDC): 48
Nominal voltage architecture (V): 12, 24, 42, 48
Characteristics of the body
Body material: PBT GF
Main product color: black
Contact characteristics
Mating tongue width: 1.5 mm [.059 in]
Housing features
Centerline (pitch): 11.4 mm [.449 in]
Dimensions
Product height: 39.26 mm [1.546 in]
Product length: 39.2 mm [1.546 in]
Product width: 44 mm [1,732 in]
Terms of use
Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248
Operating temperature range: -40 - 120 ° C [-40 - 248 ° F]
UL flammability classification: UL 94HB
Degree of protection: IP67, IP6K9K
Caractéristiques
- MarqueTE CONNECTIVITY
- Hauteur3.93 cm
- Indice de protectionIP67
- Longueur3.92 cm
- Poids4.5 g
- Quantité par pack1
- Tension électrique48 V
- Type de port connectiqueConnexion
- Réf. ManoManoME43380095
- MMID661816704284
- Réf. fabricant1718230-1
