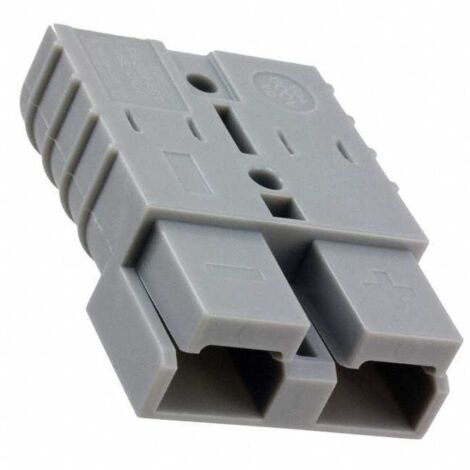

Connecteur SB 50 Gris
15 € offerts dès 250 €
avec le code
avec le code
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Oc-Pro – Cosse de batterie coupe circuit antivol – Installation facile sur borne négative – Pour véhicules de collection et camping-cars
13,45 €
202
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 21625
Code Producteur: Cross Reference 647845-4
Producteur: Cross Reference TE/Connectivity
Remarque : l'article est une reproduction de l'original, veuillez nous contacter pour plus d'informations.
Vendu au pièce
Product Type Features
Product Type: Housing
Housing Type: Plug/Receptacle
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage (VAC): 600
Operating Voltage (VDC): 600
Termination Features
Wire/Cable Size (AWG): 12 – 6
Wire/Cable Size (mm²): 3.085 – 14
Wire/Cable Size (CMA): 6088 – 27629
Wire Type: Stranded
Wire/Cable Type: Discrete Wire
Mechanical Attachment
Panel Mount Retention: Without
Housing Features
UL Flammability Rating: UL 94V-0
Housing Color: Gray
Housing Material: Polycarbonate
Dimensions
Length: 48.23 mm [ 1.9 in ]
Height: 15.88 mm [ .625 in ]
Accepts Wire Insulation Diameter Range: 10 mm [ .394 in ]
Width: 35.05 mm [ 1.38 in ]
Usage Conditions
Sealed Condition: Not Sealed
Operation/Application
Connector System: Wire-to-Wire
Applies To: Wire/Cable
Circuit Application: Power
Industry Standards
UL Rating: Recognized
Agency/Standard: UL
Agency/Standard Number: E28476
Scheda Tecnica
Type de produit: Connecteur
Serie: SR50
Ampérage: 50A
Matériel: PC (Polycarbonate)
Couleur: Gris
Température de fonctionnement: -20°C à +105°C
Dimensions: 48,23x35,05x15,88 (L x W x H)
Inflammabilité: 94V-0
Voltage: 600V
Montage: Sur câble
Câble range: 3.085 - 14.00 mmq
Nombre de pôles: 2
Nombre de rangées: 1
Orientation: 180°
Code Producteur: Cross Reference 647845-4
Producteur: Cross Reference TE/Connectivity
Remarque : l'article est une reproduction de l'original, veuillez nous contacter pour plus d'informations.
Vendu au pièce
Product Type Features
Product Type: Housing
Housing Type: Plug/Receptacle
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage (VAC): 600
Operating Voltage (VDC): 600
Termination Features
Wire/Cable Size (AWG): 12 – 6
Wire/Cable Size (mm²): 3.085 – 14
Wire/Cable Size (CMA): 6088 – 27629
Wire Type: Stranded
Wire/Cable Type: Discrete Wire
Mechanical Attachment
Panel Mount Retention: Without
Housing Features
UL Flammability Rating: UL 94V-0
Housing Color: Gray
Housing Material: Polycarbonate
Dimensions
Length: 48.23 mm [ 1.9 in ]
Height: 15.88 mm [ .625 in ]
Accepts Wire Insulation Diameter Range: 10 mm [ .394 in ]
Width: 35.05 mm [ 1.38 in ]
Usage Conditions
Sealed Condition: Not Sealed
Operation/Application
Connector System: Wire-to-Wire
Applies To: Wire/Cable
Circuit Application: Power
Industry Standards
UL Rating: Recognized
Agency/Standard: UL
Agency/Standard Number: E28476
Scheda Tecnica
Type de produit: Connecteur
Serie: SR50
Ampérage: 50A
Matériel: PC (Polycarbonate)
Couleur: Gris
Température de fonctionnement: -20°C à +105°C
Dimensions: 48,23x35,05x15,88 (L x W x H)
Inflammabilité: 94V-0
Voltage: 600V
Montage: Sur câble
Câble range: 3.085 - 14.00 mmq
Nombre de pôles: 2
Nombre de rangées: 1
Orientation: 180°
Caractéristiques
- MarqueERREBI GROUP
- Quantité par pack1
- CouleurGris
- Intensité courant50 A
- Largeur35 mm
- MatièresPolycarbonate
- Nombre de connexion(s) bornier2
- Nombre d'embout(s)2
- Réf. ManoManoME11332434
- MMID308348397475
- Réf. fabricant647845-4
