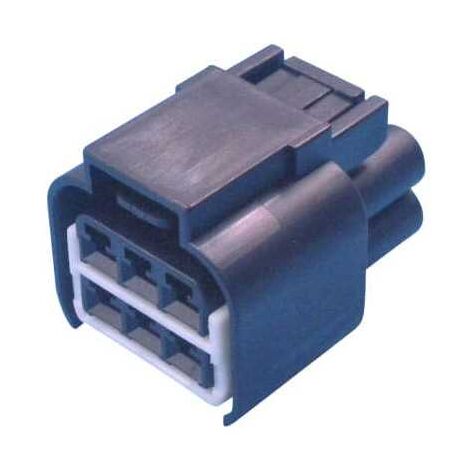

Connecteur Multilock Mâle 6 Voies
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Sjlerst – Adaptateur répartiteur RJ45 1 à 2 ports – Câble réseau CAT8 plaqué or – Connexion Ethernet pour bureau et domicile
10,45 €
81
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Code ErreBi: 58522
Code Producteur: 936257-2
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Type of connector and housing: Housing for female terminals
Connector system: Cable to cable
Configuration functionality
Number of positions: 6
Number of lines: 2
Characteristics of the body
Body material: PBT
Cable exit angle: 180 °
Main product color: Black
Contact functions
Mating Tab Width: 2.8mm [0.11in]
Mechanical attack
Coupling Alignment Type: Polarized
Cable gland: No
Center line (pitch): 5.6 mm [0.22 inch]
Dimensions
Row-to-row spacing: 6.8 mm [0.267 inch]
Product height: 26.6mm [1.04 inch]
Product length: 26.2mm [1.03in]
Product width: 33mm [1.29 inch]
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: Multilock
Matériel: PBT (Polytéréphtalate de butylène)
Couleur: Noir
Température de fonctionnement: -30°C à +105°C
Dimensions: 26,20x33,00x26,60 (L x W x H)
Voltage: 12V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 6
Nombre de rangées: 2
Pas: 5.60 mm
Orientation: 180°
Code Producteur: 936257-2
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Type of connector and housing: Housing for female terminals
Connector system: Cable to cable
Configuration functionality
Number of positions: 6
Number of lines: 2
Characteristics of the body
Body material: PBT
Cable exit angle: 180 °
Main product color: Black
Contact functions
Mating Tab Width: 2.8mm [0.11in]
Mechanical attack
Coupling Alignment Type: Polarized
Cable gland: No
Center line (pitch): 5.6 mm [0.22 inch]
Dimensions
Row-to-row spacing: 6.8 mm [0.267 inch]
Product height: 26.6mm [1.04 inch]
Product length: 26.2mm [1.03in]
Product width: 33mm [1.29 inch]
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: Multilock
Matériel: PBT (Polytéréphtalate de butylène)
Couleur: Noir
Température de fonctionnement: -30°C à +105°C
Dimensions: 26,20x33,00x26,60 (L x W x H)
Voltage: 12V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 6
Nombre de rangées: 2
Pas: 5.60 mm
Orientation: 180°
Caractéristiques
- MarqueTE CONNECTIVITY
- Longueur2.62 cm
- Poids7.2 g
- Quantité par pack1
- Tension électrique12 V
- Type de port connectiqueConnexion
- Réf. ManoManoME51149673
- MMID464398257466
- Réf. fabricant936257-2
