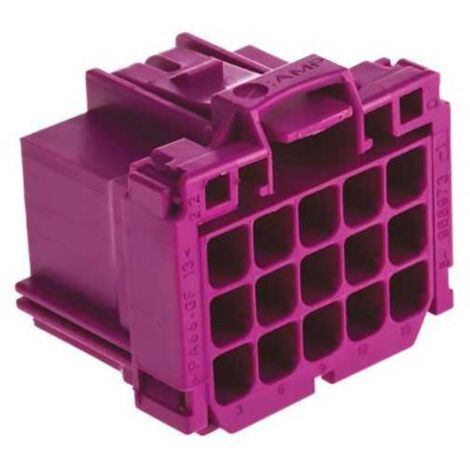

Connecteur MCP 2.8K mâle 15 Voies Violet

Code ErreBi: 49050
Code Producteur: 8-968973-1
Producteur: TE/Connectivity
Vendu au pièce

Product Type Features
- Connector & Housing Type: Housing for Female Terminals
- Connector System: Wire-to-Wire
- Sealable: No
- Hybrid Connector: No
- Primary Locking Feature: On the Terminal
- Strain Relief: No
- Row-to-Row Spacing: 5.5 mm [ .217 in ]

Configuration Features
- Number of Positions: 15
- Number of Rows: 3

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24
- Operating Voltage (VDC): 28

Body Features
- Primary Product Color: Other
- Cable Exit Angle: 180°
- Body Material: PBT GF

Contact Features
- Mating Tab Width: 2.8 mm [ .11 in ]

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: No

Housing Features
- Centerline (Pitch): 5 mm [ .197 in ]

Dimensions
- Width: 31 mm [ 1.22 in ]
- Height: 24 mm [ .945 in ]
- Length: 31 mm [ 1.22 in ]

Usage Conditions
- Operating Temperature Range: -40 – 120 °C [ -40 – 248 °F ]

Operation/Application
- Circuit Application: Signal

Other
- Connector Position Assurance Capable: No
- Serviceable: No

Scheda Tecnica

Type de produit: Corps du connecteur
Serie: MCP
Matériel: PBT (Polytéréphtalate de butylène)
Couleur: Pourpre
Température de fonctionnement: -40°C à +120°C
Dimensions: 31,00x31,00x24,00 (L x W x H)
Voltage: 24V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 15
Nombre de rangées: 3
Pas: 5.00 mm
Orientation: 180°
