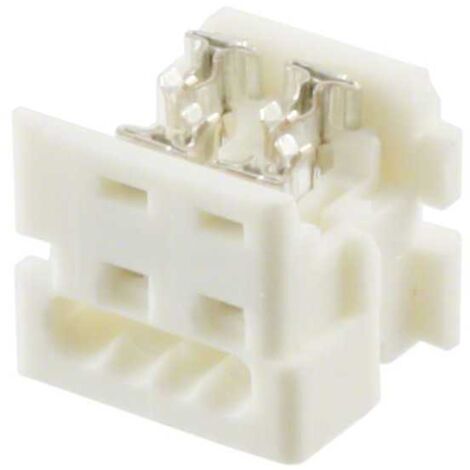

Connecteur IDC Picoflex Femelle 4 Voies
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Sjlerst – Adaptateur répartiteur RJ45 1 à 2 ports – Câble réseau CAT8 plaqué or – Connexion Ethernet pour bureau et domicile
10,45 €
81
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Code ErreBi: 15470
Code Producteur: 90327-0304
Producteur: Molex
Prix au 3 pièces
Remarque: Quantité 1 correspond à 3 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 9 pièces
Product Range: MOLEX - Picoflex 90327 Series
Contact Termination Type: IDC / IDT
Gender: Receptacle
No. of Contacts: 4
No. of Rows: 2
Pitch Spacing: 1.27mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Colour: White
Connector Mounting Orientation: Cable
Contact Current Rating: 1.2A
Contact Resistance: 10mohm
Contact Termination: IDC / IDT
External Width: 11.43mm
Flammability Rating: UL94V-0
Lead Spacing: 2.54mm
Material: Polyester
Operating Temperature Max: 105°C
Operating Temperature Min: -25°C
Termination Method: IDT
Voltage Rating V AC: 250V
Wire Size AWG Max: 26AWG
Wire Size AWG Min: 28AWG
Withstand Voltage: 750V
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: IDC
Ampérage: 1.2A
Matériel: Polyester
Couleur: Blanc
Température de fonctionnement: -25°C a +105°C
Inflammabilité: 94V-0
Voltage: 250V
Genre: Femelle
Nombre de pôles: 4
Nombre de rangées: 2
Pas: 1.27 mm
Code Producteur: 90327-0304
Producteur: Molex
Prix au 3 pièces
Remarque: Quantité 1 correspond à 3 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 9 pièces
Product Range: MOLEX - Picoflex 90327 Series
Contact Termination Type: IDC / IDT
Gender: Receptacle
No. of Contacts: 4
No. of Rows: 2
Pitch Spacing: 1.27mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Colour: White
Connector Mounting Orientation: Cable
Contact Current Rating: 1.2A
Contact Resistance: 10mohm
Contact Termination: IDC / IDT
External Width: 11.43mm
Flammability Rating: UL94V-0
Lead Spacing: 2.54mm
Material: Polyester
Operating Temperature Max: 105°C
Operating Temperature Min: -25°C
Termination Method: IDT
Voltage Rating V AC: 250V
Wire Size AWG Max: 26AWG
Wire Size AWG Min: 28AWG
Withstand Voltage: 750V
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: IDC
Ampérage: 1.2A
Matériel: Polyester
Couleur: Blanc
Température de fonctionnement: -25°C a +105°C
Inflammabilité: 94V-0
Voltage: 250V
Genre: Femelle
Nombre de pôles: 4
Nombre de rangées: 2
Pas: 1.27 mm
Caractéristiques
- MarqueMOLEX
- Intensité courant1.2 A
- MatièresPolyester
- Poids1 g
- Quantité par pack3
- Tension électrique250 V
- Type de cable audio & vidéoJack
- Type de port connectiqueConnexion
- Réf. ManoManoME4534260
- MMID419740903314
- Réf. fabricant90327-0304
- EAN800753538108
