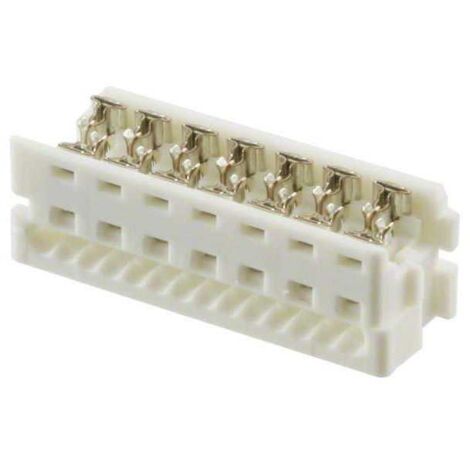

Connecteur IDC Picoflex Femelle 14 Voies
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Sjlerst – Adaptateur répartiteur RJ45 1 à 2 ports – Câble réseau CAT8 plaqué or – Connexion Ethernet pour bureau et domicile
10,45 €
81
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 15931
Code Producteur: 90327-0314
Producteur: Molex
Prix au 3 pièces
Remarque: Quantité 1 correspond à 3 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 9 pièces
General
Category: Ribbon Cable / Wire Trap Connectors
Product Name: Picoflex®
Series: 90327
Comments: Low Profile
Component Type: Housing
Glow-Wire Compliant: No
Physical
Circuits (Loaded): 14
Circuits (maximum): 14
Color - Resin: White
Durability (mating cycles max): 30
Entry Angle: Vertical
Flammability: 94V-0
Lock to Mating Part: Yes
Material - Metal: Phosphor Bronze
Material - Plating Mating: Tin
Material - Plating Termination: Tin
Material - Resin: Polyester
Net Weight: 0.828/g
Number of Rows: 2
PCB Locator: No
PCB Retention: None
Pitch - Mating Interface: 1.27mm
Pitch - Termination Interface: 1.27mm
Polarized to Mating Part: Yes
Polarized to PCB: No
Shrouded: Fully
Stackable: No
Surface Mount Compatible (SMC): N/A
Temperature Range - Operating: -40°C to +105°C
Termination Interface: Style: IDT or Pierce
Wire Insulation Diameter: 1.00mm max.
Wire Size AWG: 26, 28
Wire/Cable Type: Ribbon Cable
Electrical (Please review the Product Specification for specific details.)
Current - Maximum per Contact: 1.2A
Voltage - Maximum: 250V
Agency Certification
CSA: LR19980
UL: E29179
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: IDC
Ampérage: 1.2A
Matériel: Polyester
Couleur: Blanc
Température de fonctionnement: -40°C à +105°C
Inflammabilité: 94V-0
Voltage: 250V
Genre: Mâle
Nombre de pôles: 14
Nombre de rangées: 2
Pas: 1.27 mm
Code Producteur: 90327-0314
Producteur: Molex
Prix au 3 pièces
Remarque: Quantité 1 correspond à 3 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 9 pièces
General
Category: Ribbon Cable / Wire Trap Connectors
Product Name: Picoflex®
Series: 90327
Comments: Low Profile
Component Type: Housing
Glow-Wire Compliant: No
Physical
Circuits (Loaded): 14
Circuits (maximum): 14
Color - Resin: White
Durability (mating cycles max): 30
Entry Angle: Vertical
Flammability: 94V-0
Lock to Mating Part: Yes
Material - Metal: Phosphor Bronze
Material - Plating Mating: Tin
Material - Plating Termination: Tin
Material - Resin: Polyester
Net Weight: 0.828/g
Number of Rows: 2
PCB Locator: No
PCB Retention: None
Pitch - Mating Interface: 1.27mm
Pitch - Termination Interface: 1.27mm
Polarized to Mating Part: Yes
Polarized to PCB: No
Shrouded: Fully
Stackable: No
Surface Mount Compatible (SMC): N/A
Temperature Range - Operating: -40°C to +105°C
Termination Interface: Style: IDT or Pierce
Wire Insulation Diameter: 1.00mm max.
Wire Size AWG: 26, 28
Wire/Cable Type: Ribbon Cable
Electrical (Please review the Product Specification for specific details.)
Current - Maximum per Contact: 1.2A
Voltage - Maximum: 250V
Agency Certification
CSA: LR19980
UL: E29179
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: IDC
Ampérage: 1.2A
Matériel: Polyester
Couleur: Blanc
Température de fonctionnement: -40°C à +105°C
Inflammabilité: 94V-0
Voltage: 250V
Genre: Mâle
Nombre de pôles: 14
Nombre de rangées: 2
Pas: 1.27 mm
Caractéristiques
- MarqueMOLEX
- Intensité courant1.2 A
- MatièresPolyester
- Poids2.4 g
- Quantité par pack3
- Tension électrique250 V
- Type de port connectiqueConnexion
- Réf. ManoManoME4535976
- MMID815383917654
- Réf. fabricant90327-0314
- EAN800753753372
