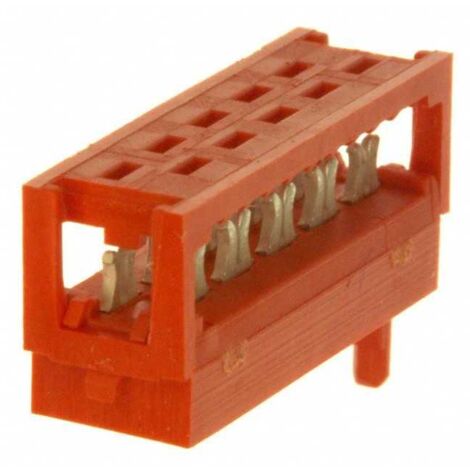

Connecteur IDC Micro Match Mâle 10 Voies
Produit similaire livré par
Ersandy – Interrupteur de télécommande sans fil 433MHz – Tension AC 85V~265V – Courant 30A – Portée jusqu'à 50m – Modes momentané, à bascule, verrouillé
15,98 €67
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 20348
Code Producteur: 1-215083-0
Producteur: TE/Connectivity
Prix au 2 pièces
Remarque: Quantité 1 correspond à 2 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 6 pièces
Mounting Orientation: Vertical
Shrouded: Yes
Connector: Style Plug
Profile: Low
Applies To: Cable
Product Type: Connector
Board Standoff: Without
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Connector System: Wire-to-Board
Ejection Latches: Without
Configuration Features
Number of Positions: 10
Electrical Characteristics
Insulation Resistance?(MO): 1000
Operating Voltage?(VDC): 100
Body Features
Header Type: Pin Header
Daisy Chain: Without
Contact Features
Contact Mating Area Plating Material: Tin
Contact Design: Dual Beam
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin
Contact Current Rating?(A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Gold
Termination Features
Termination Method to PC Board: Through Hole
Mechanical Attachment
PCB Mount Retention: Without
Mating Alignment Type: Polarization
Scheda Tecnica
Type de produit: Connecteur
Serie: IDC
Ampérage: 1.5A
Matériel: PBT (Polytéréphtalate de butylène)
Couleur: Rouge
Température de fonctionnement: -40°C à +105°C
Dimensions: 6,80x16,20x5,10 (L x W x H)
Inflammabilité: 94V-0
Voltage: 100V
Matériel de contact: Bronze phosphoreux
Montage: Sur câble
Câble range: 28 AWG
Genre: Mâle
Nombre de pôles: 10
Nombre de rangées: 2
Pas: 1.27 mm
Orientation: 180°
Plaquage du contact: étain
Code Producteur: 1-215083-0
Producteur: TE/Connectivity
Prix au 2 pièces
Remarque: Quantité 1 correspond à 2 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 6 pièces
Mounting Orientation: Vertical
Shrouded: Yes
Connector: Style Plug
Profile: Low
Applies To: Cable
Product Type: Connector
Board Standoff: Without
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Connector System: Wire-to-Board
Ejection Latches: Without
Configuration Features
Number of Positions: 10
Electrical Characteristics
Insulation Resistance?(MO): 1000
Operating Voltage?(VDC): 100
Body Features
Header Type: Pin Header
Daisy Chain: Without
Contact Features
Contact Mating Area Plating Material: Tin
Contact Design: Dual Beam
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin
Contact Current Rating?(A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Gold
Termination Features
Termination Method to PC Board: Through Hole
Mechanical Attachment
PCB Mount Retention: Without
Mating Alignment Type: Polarization
Scheda Tecnica
Type de produit: Connecteur
Serie: IDC
Ampérage: 1.5A
Matériel: PBT (Polytéréphtalate de butylène)
Couleur: Rouge
Température de fonctionnement: -40°C à +105°C
Dimensions: 6,80x16,20x5,10 (L x W x H)
Inflammabilité: 94V-0
Voltage: 100V
Matériel de contact: Bronze phosphoreux
Montage: Sur câble
Câble range: 28 AWG
Genre: Mâle
Nombre de pôles: 10
Nombre de rangées: 2
Pas: 1.27 mm
Orientation: 180°
Plaquage du contact: étain
Caractéristiques
- MarqueTE CONNECTIVITY
- Largeur1.62 cm
- Tension électrique100 V
- Intensité courant1.5 A
- Garantie2 an(s)
