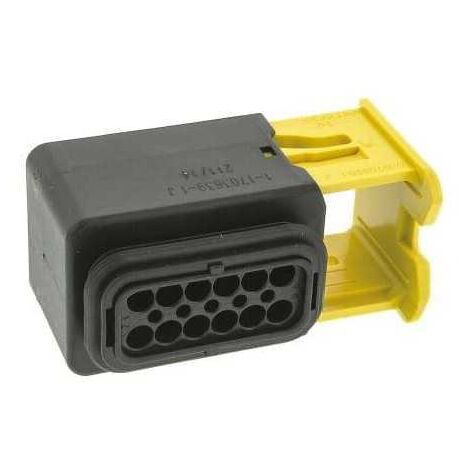

Connecteur MCP Mixed male 6x2 voies
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Sjlerst – Adaptateur répartiteur RJ45 1 à 2 ports – Câble réseau CAT8 plaqué or – Connexion Ethernet pour bureau et domicile
10,45 €
81
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 55336
Code Producteur: 1-1703639-1
Producteur: TE/Connectivity
Vendu au pièce
Number of positions: 12 positions
Pitch: 4mm
Gender: Male
Mounting Style: Cable Mount / Free Hanging
Termination Style: Crimp
Maximum wire diameter: 16 AWG
Black colour
Flammability class: UL 94 V-0
Height: 31.25mm
Housing Material: Polybutylene Terephthalate (PBT)
Ingress Protection: IP67
Length: 54.1mm
Locking mechanism: on the terminal
Maximum working temperature: +140C
Minimum operating temperature: - 40 C
Mounting angle: straight
Number of lines: 2 lines
Rated voltage: 42V DC
Width: 25.7mm
Conductor Size Range: 16 AWG
Unit Weight: 20g
Code Producteur: 1-1703639-1
Producteur: TE/Connectivity
Vendu au pièce
Number of positions: 12 positions
Pitch: 4mm
Gender: Male
Mounting Style: Cable Mount / Free Hanging
Termination Style: Crimp
Maximum wire diameter: 16 AWG
Black colour
Flammability class: UL 94 V-0
Height: 31.25mm
Housing Material: Polybutylene Terephthalate (PBT)
Ingress Protection: IP67
Length: 54.1mm
Locking mechanism: on the terminal
Maximum working temperature: +140C
Minimum operating temperature: - 40 C
Mounting angle: straight
Number of lines: 2 lines
Rated voltage: 42V DC
Width: 25.7mm
Conductor Size Range: 16 AWG
Unit Weight: 20g
Caractéristiques
- MarqueTE CONNECTIVITY
- Hauteur3.12 cm
- Indice de protectionIP67
- Longueur5.41 cm
- MatièresPolyéthylènes téréphtalates (PET)
- Poids20 g
- Quantité par pack1
- Tension électrique42 V
- Type de cable audio & vidéoMini-Jack
- Type de port connectiqueConnexion
- Réf. ManoManoME74464569
- MMID942245020823
- Réf. fabricant1-1703639-1
