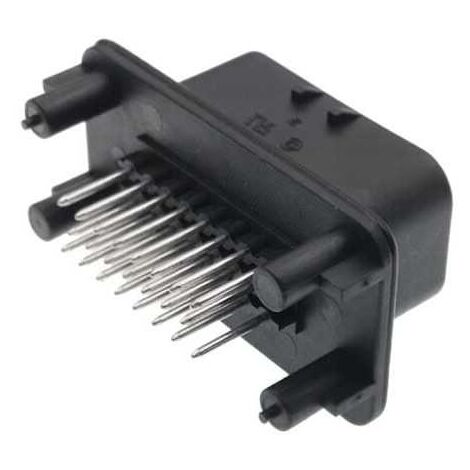

Connecteur AmpSeal femelle 23 Voies noir PCB

Code ErreBi: 57144
Code Producteur: 776228-1
Producteur: TE/Connectivity
Vendu au pièce

Characteristics of the product type

Connector and Housing Type: Female Terminal Housing
Connector system: cable-to-board, cable-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing

Configuration features

Number of positions: 23
Number of lines: 3

electrical characteristics

Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240

Characteristics of the body

Body Material: Other
Cable exit angle: 180°
Main product color: natural

Contact characteristics

Diameter of the coupling pin: 1.3 mm [.051 in]

Mechanical attack

Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without

Housing features

Centerline (pitch): 4 mm [.157 in]

Dimensions

Row-to-row spacing: 4 mm [.157 in]
Product Height: 34.6mm [1.362 in]
Product length: 27.4 mm [1,079 in]
Product width: 33.6 mm [1,323 in]

Terms of use

Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257

Industry standard

UL flammability classification: UL 94V-0
Degree of protection: IP67, IP69K

Scheda Tecnica

Type de produit: Corps du connecteur
Serie: AmpSeal
Ampérage: 8A
Matériel: Plastique
Couleur: Noir
Température de fonctionnement: -40°C à +105°C
Dimensions: 60.80x37.90x32.10 (L x W x H)
Inflammabilité: 94V-0
Voltage: 250V
Montage: Circuit imprimé
Genre: Femelle
Nombre de pôles: 23
Nombre de rangées: 3
Pas: 4.00 mm
Orientation: 180°
