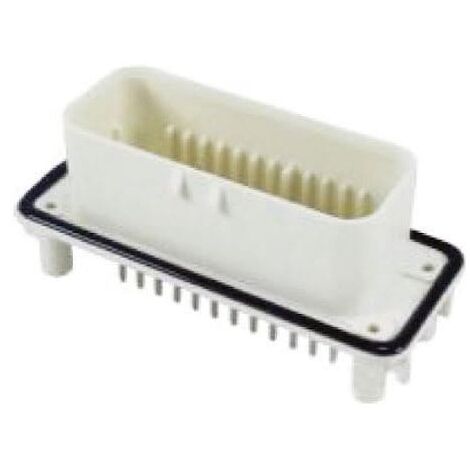

Connecteur AmpSeal femelle 35 Voies blanc PCB
Produit similaire livré par
Wago – Flacon de 100 mini bornes de connexion automatique 2, 3, 5 et 8 fils – 450V 24A – Système PUSH WIRE® – Boîtier transparent avec point de test
26,90 €
108
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Code ErreBi: 57149
Code Producteur: 776231-2
Producteur: Reference TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: cable-to-board, cable-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing
Configuration features
Number of positions: 35
Number of lines: 3
electrical characteristics
Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Characteristics of the body
Body Material: Other
Cable exit angle: 180°
Main product color: natural
Contact characteristics
Diameter of the coupling pin: 1.3 mm [.051 in]
Mechanical attack
Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without
Housing features
Centerline (pitch): 4 mm [.157 in]
Dimensions
Row-to-row spacing: 4 mm [.157 in]
Product Height: 34.6mm [1.362 in]
Product length: 27.4 mm [1,079 in]
Product width: 33.6 mm [1,323 in]
Terms of use
Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257
Industry standard
UL flammability classification: UL 94V-0
Degree of protection: IP67, IP69K
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: AmpSeal
Ampérage: 8A
Matériel: Plastique
Couleur: Blanc
Protection IP: IP67
Température de fonctionnement: -40°C à +105°C
Dimensions: 76.90X32.10X32.10 (L x W x H)
Inflammabilité: 94V-0
Voltage: 250V
Montage: Circuit imprimé
Genre: Femelle
Nombre de pôles: 35
Nombre de rangées: 3
Pas: 4.00 mm
Orientation: 180°
Code Producteur: 776231-2
Producteur: Reference TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: cable-to-board, cable-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing
Configuration features
Number of positions: 35
Number of lines: 3
electrical characteristics
Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Characteristics of the body
Body Material: Other
Cable exit angle: 180°
Main product color: natural
Contact characteristics
Diameter of the coupling pin: 1.3 mm [.051 in]
Mechanical attack
Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without
Housing features
Centerline (pitch): 4 mm [.157 in]
Dimensions
Row-to-row spacing: 4 mm [.157 in]
Product Height: 34.6mm [1.362 in]
Product length: 27.4 mm [1,079 in]
Product width: 33.6 mm [1,323 in]
Terms of use
Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257
Industry standard
UL flammability classification: UL 94V-0
Degree of protection: IP67, IP69K
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: AmpSeal
Ampérage: 8A
Matériel: Plastique
Couleur: Blanc
Protection IP: IP67
Température de fonctionnement: -40°C à +105°C
Dimensions: 76.90X32.10X32.10 (L x W x H)
Inflammabilité: 94V-0
Voltage: 250V
Montage: Circuit imprimé
Genre: Femelle
Nombre de pôles: 35
Nombre de rangées: 3
Pas: 4.00 mm
Orientation: 180°
Caractéristiques
- MarqueTE CONNECTIVITY
- Longueur2.74 cm
- Largeur3.36 cm
- Hauteur3.46 cm
- Poids29 g
