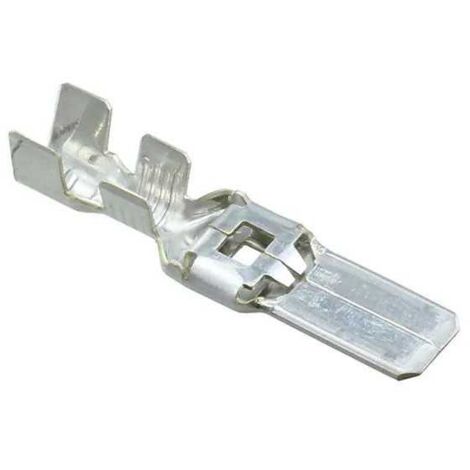

Borne NG1 languette 8mm
Produit similaire livré par
Wago – Borne de connexion automatique 5 entrées 25mm² – CAGE CLAMP® pour fils souples et rigides – 32A – Tension 405V – Boîtier transparent
24,20 €
13
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 15521
Code Producteur: 1544333-1
Producteur: TE/Connectivity
Prix au 2 pièces
Remarque: Quantité 1 correspond à 2 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 6 pièces
Product Type Features
-Sealable: Yes
-Primary Locking Feature: Clean Body
Body Features
-Terminal Seal Type: Single Wire Seal (SWS)
Contact Features
-Crimp Type: F-Crimp
-Typical Current Rating(A): 55
-Contact Fabrication: Stamped & Formed
-Contact Size: 8mm
-Terminal Type: Tab
-Mating Tab Width: 8mm[.315in]
-Mating Tab Thickness: 1mm[.039in]
-Interface Plating: Tin (Sn)
Termination Features
-Termination Method to Wire & Cable: Crimp
-Product Terminates To: Wire
Dimensions
-Accepts Wire Insulation Diameter Range: 4.9 – 5.9mm[.193 – .233in]
-Wire Size(AWG): 9 – 7
-Wire Size(mm²): 7 – 10
-Wire Size Search(mm²): 7, 8, 10
-Wire Size Search(AWG): 7, 8, 9
Usage Conditions
-Insulation Option: Uninsulated
-Operating Temperature (Max)(°C): 80, 85, 90, 100, 105, 110, 120, 125
-Operating Temperature (Max)(°F): 176, 185, 194, 212, 221, 230, 248, 257
-Operating Temperature Range: -40 – 125°C[-40 – 257°F]
Operation/Application
-Compatible With Wire Base Material: Copper
Other
-Terminal Transmits: 41 – 100 A (High Power)
Scheda Tecnica
Type de produit: Terminal
Serie: NG1
Ampérage: 55A
Température de fonctionnement: -40°C à +125°C
Montage: Sur câble
Câble range: 10 - 7 AWG
Genre: Mâle
Orientation: 180°
Plaquage du contact: étain
Code Producteur: 1544333-1
Producteur: TE/Connectivity
Prix au 2 pièces
Remarque: Quantité 1 correspond à 2 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 6 pièces
Product Type Features
-Sealable: Yes
-Primary Locking Feature: Clean Body
Body Features
-Terminal Seal Type: Single Wire Seal (SWS)
Contact Features
-Crimp Type: F-Crimp
-Typical Current Rating(A): 55
-Contact Fabrication: Stamped & Formed
-Contact Size: 8mm
-Terminal Type: Tab
-Mating Tab Width: 8mm[.315in]
-Mating Tab Thickness: 1mm[.039in]
-Interface Plating: Tin (Sn)
Termination Features
-Termination Method to Wire & Cable: Crimp
-Product Terminates To: Wire
Dimensions
-Accepts Wire Insulation Diameter Range: 4.9 – 5.9mm[.193 – .233in]
-Wire Size(AWG): 9 – 7
-Wire Size(mm²): 7 – 10
-Wire Size Search(mm²): 7, 8, 10
-Wire Size Search(AWG): 7, 8, 9
Usage Conditions
-Insulation Option: Uninsulated
-Operating Temperature (Max)(°C): 80, 85, 90, 100, 105, 110, 120, 125
-Operating Temperature (Max)(°F): 176, 185, 194, 212, 221, 230, 248, 257
-Operating Temperature Range: -40 – 125°C[-40 – 257°F]
Operation/Application
-Compatible With Wire Base Material: Copper
Other
-Terminal Transmits: 41 – 100 A (High Power)
Scheda Tecnica
Type de produit: Terminal
Serie: NG1
Ampérage: 55A
Température de fonctionnement: -40°C à +125°C
Montage: Sur câble
Câble range: 10 - 7 AWG
Genre: Mâle
Orientation: 180°
Plaquage du contact: étain
Caractéristiques
- MarqueTE CONNECTIVITY
- Quantité par pack2
- CouleurGris clair
- Intensité courant55 A
- MatièresMétal
- Poids6.2 g
- Type de raccordementCosse isolée
- Réf. ManoManoME4534487
- MMID631830430063
- Réf. fabricant1544333-1
