Description
Code ErreBi: 50361
Code Producteur: Cross Reference 171662-1
Producteur: Cross Reference TE/Connectivity
Remarque : l'article est une reproduction de l'original, veuillez nous contacter pour plus d'informations.
Prix au 20 pièces
Remarque: Quantité 1 correspond à 20 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 60 pièces
Product Type Features
- Sealable: Yes
- Primary Locking Feature: Clean Body
- Wire Type: Copper
Body Features
- Seal Type: Single Wire Seal (SWS)
Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 10
- Terminal & Splice Type: Receptacle
- Mating Tab Width: 1.8 mm [ .071 in ]
- Mating Tab Thickness: .64 mm [ .025 in ]
- Interface Plating: Tin (Sn)
- Contact Termination Area Plating Material: Tin (Sn)
Termination Features
- Termination Method: Crimp
Dimensions
- Wire Size (mm²): .5 – 1.25
- Wire Size (AWG): 20 - 16
- Wire Insulation Diameter: 2 – 2.5 mm [ .078 – .102 in ]
Usage Conditions
- Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]
Other
- Terminal Transmits: 0 – 24 A (Low Power)
Scheda Tecnica

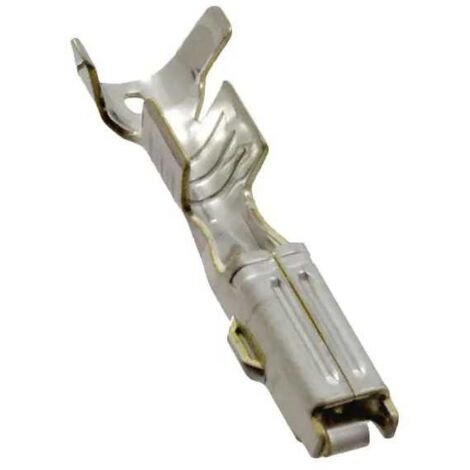

Type de produit: Terminal
Serie: Econoseal J
Ampérage: 10A
Température de fonctionnement: -30°C à +105°C
Matériel de contact: Laiton
Montage: Sur câble
Câble range: 0.50 - 1.25 mmq
Genre: Femelle
Orientation: 180°
Plaquage du contact: étain
Code Producteur: Cross Reference 171662-1
Producteur: Cross Reference TE/Connectivity
Remarque : l'article est une reproduction de l'original, veuillez nous contacter pour plus d'informations.
Prix au 20 pièces
Remarque: Quantité 1 correspond à 20 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 60 pièces
Product Type Features
- Sealable: Yes
- Primary Locking Feature: Clean Body
- Wire Type: Copper
Body Features
- Seal Type: Single Wire Seal (SWS)
Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 10
- Terminal & Splice Type: Receptacle
- Mating Tab Width: 1.8 mm [ .071 in ]
- Mating Tab Thickness: .64 mm [ .025 in ]
- Interface Plating: Tin (Sn)
- Contact Termination Area Plating Material: Tin (Sn)
Termination Features
- Termination Method: Crimp
Dimensions
- Wire Size (mm²): .5 – 1.25
- Wire Size (AWG): 20 - 16
- Wire Insulation Diameter: 2 – 2.5 mm [ .078 – .102 in ]
Usage Conditions
- Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]
Other
- Terminal Transmits: 0 – 24 A (Low Power)
Scheda Tecnica
Type de produit: Terminal
Serie: Econoseal J
Ampérage: 10A
Température de fonctionnement: -30°C à +105°C
Matériel de contact: Laiton
Montage: Sur câble
Câble range: 0.50 - 1.25 mmq
Genre: Femelle
Orientation: 180°
Plaquage du contact: étain
Caractéristiques
- MarqueERREBI GROUP
- Quantité par pack20
- Configuration raccordFemelle
- CouleurGris clair
- Intensité courant10 A
- MatièresLaiton
- Poids10 g
- Réf. ManoManoME25987781
- MMID610690130420
- Réf. fabricant171662-1
