80 Pieces DC Solder Connectors Adaptors 5.5 x 2.1 mm & 5.5 x 2.5 mm Male Jack + Female Sockets with Rubber Cap for Audio/Video/Phone/CCTV
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
'/%3E%3C/svg%3E)
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Specification:
DC Plug
Rated voltage: 30V AC, DC
Rated current: 1A.
Contact resistance: ≤30mΩ
Insulation Resistance: ≥100MΩ
Hold voltage: 50-60 Hz, 500 V/60 S
Working temperature: -40°C - +85°C
Size: 5.5 mm x 2.1 mm/5.5 mm x 2.5 mm.
DC Panel Socket
Rated voltage: DC 50V.
Rated current: 1A.
Contact resistance: ≤30mΩ
Insulation Resistance: ≥100MΩ
Withstand voltage: 50Hz, AC 500V/60S
Working temperature: -16°C - +65°C
Size: 5.5 mm x 2.1 mm/5.5 mm x 2.5 mm.

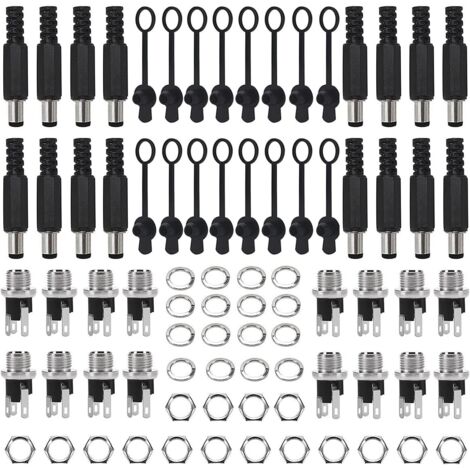

Package includes:
8 × DC male connector 5.5 mm x 2.1 mm.
8 × DC male connector 5.5 mm x 2.5 mm.
8 × DC Screw Female Panel Socket 5.5 mm x 2.1 mm
8 × DC Screw Female Panel Socket 5.5 mm x 2.5 mm
16 × Protective Rubber Cap
32 × fixing nut
Caractéristiques
- MarqueREDROAD
- Intensité courant1 A
- MatièresSynthètique
- Type de cable audio & vidéoJack
- Réf. ManoManoME211255190
- MMID197235444310
- Réf. fabricantHD-MNGM-0410-133
- EAN3773474579477
