36v 350w 15a Motor Controller+dashboard+front/rear Light Speed Controller For Scooter Electric Bicy

Ultra-quiet motor torque ripple is minimized to achieve no noise no vibration and comfortable
The controller has high conversion efficiencywhich can effectively reduce controller temperature rise and extend battery life.
Fit For: Electric Motorcycle/E-bike/Scooter/Electric Bicycle/Balance Skateboard
Specification:
Type:DC Motor/Speed Controller
Voltage:DC 36V
Rated :350W
Undervoltage:30V
Current-Limiting:88A
Instruction:
Battery display:
33v-36v The first light is long
36v-37v one or two lights long
37v-385v one or two lights long
385v or more one two three four lights
Low voltage alarm: The first light flashes when the battery is below 33V and the buzzer sounds 6 times.
Low voltage alarm speed mode: The speed limit is about 15Km/h. When the returns to 37Vthe throttle must return to the initial position to release the low voltage and return to normal operation.
Constant speed cruise: The speed is stable for about 6 seconds to automatically start the cruise control after the cruise is fixed the throttle can be released; press the brake or push the throttle again to release the cruise control and enter the manual mode.
Speed: The low speed is 152km/h; the high speed is 25km/h (maximum)
Note:Load has a certain effect on speed.
Automatic shutdown: Automatically shut down 10 minutes after no operation.
Colour:Black+silver
Material:Metal + plastic

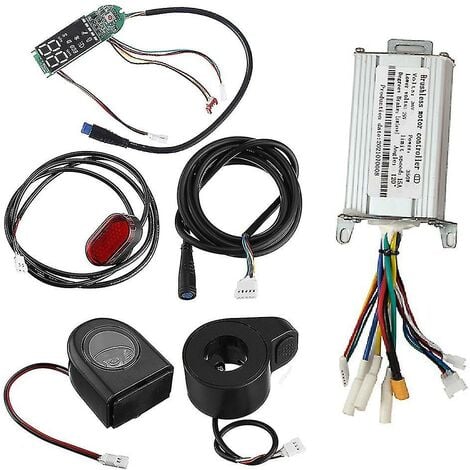

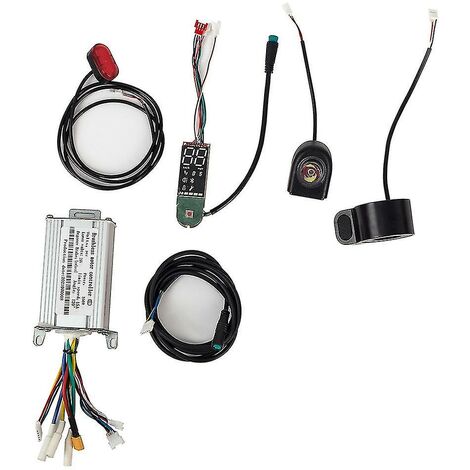

Package Contents:
1 * Controller
1 * Dashboard
1 * Accelerator
1 * Headlight
1 * Taillight
1 * connecting wire
Only the above package content other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
