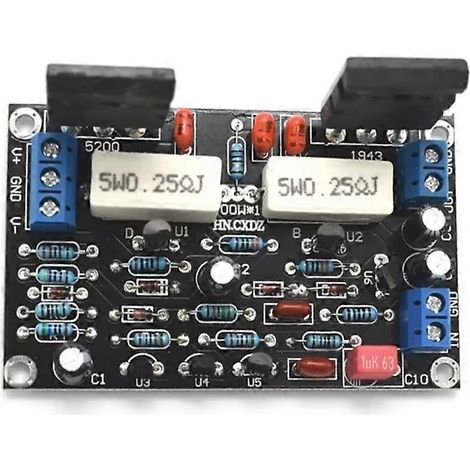

2SC5200 Plus 2SA1943 Haute Puissance Mono 100W DC 35V Finished Puissance Carte Amplificateur

1. The noise of the switch is small and will not have too much impact on the haut-parleur. It is recommended to add a horn protection circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier switch machine, but also avoid the sortie DC burning the horn when the power amplifier is.
2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the sortie zero drift voltage will generally not exceed 50mv, and is relatively stable.
3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging, beginners also have a very high success rate.
Operating voltage: Dual DC 10-45V recommended Dual DC 35V
Rated sortie power: 100W(4 Ohm ± 35V)
Maximum sortie power: 150W (4 Ohm ± 45V) enormous heat, is not recommended
PCB size: 80 x 50 x 35mm
Pitch: 5.08mm
Hole distance between two power tube: 47mm
Remarque:due to different production batches, the appearance is slightly different, which does not affect the use.
Couleur:As Shown
Matériau:plastique+métal
Contenu de l'emballage:
1 x power amplifier carte
Seul le contenu de l'emballage ci-dessus est inclus, les autres produits ne sont pas inclus.
Remarque: La réflexion de la lumière et les différents écrans peuvent rendre la couleur de l'article sur la photo légèrement différente de la réalité. L'erreur de mesure autorisée est de plus ou moins 1 à 3 cm.
