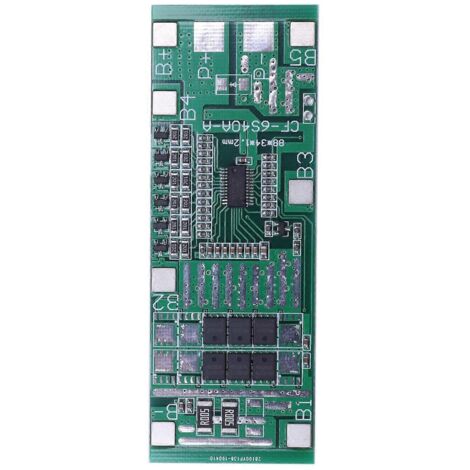

24V 6S 20A 18650 Lithium Battery Protection Board Pcb With Balance--
(24,99€/pc)
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Régulateur solaire 30A 12/24V MPPT 100/30 – Détection automatique tension – Protection surchauffe – 1 entrée panneaux et batteries – Victron Energy
100,00 €
15
Vendu par ZENYTHIANS VENTURES LTD
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Maximum discharge current: 20A
Instantaneous discharge current: 35A
Charging voltage: 25.5V
Maximum charging current: 20A
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 1.0±0.5S
Overcharge release voltage: 4.15±0.05V
Battery balance detection voltage: 4.125±0.025V
Battery balance release voltage: 4.125±0.05V
Battery balance current: 41±5mA
Overdischarge detection voltage: 2.7 ± 0.1V
Overdischarge detection delay: 1.0±0.5S
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 100mV
Overcurrent detection delay: 1±0.3S
Overcurrent protection current: 40±5A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 250uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: less than equal 20mΩ
Working current: less than equal 40uA
Temperature range: -30/+80°C
Size: 88*34*2.8mm
colour:green
Material:PCB
Package contents:
1 * Protection board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Caractéristiques
- MarqueZEVE
- Tension électrique24 V
- Type de régulateur de charge solairePWM
- Réf. ManoManoME213292291
- MMID334641986690
- Réf. fabricantZY0422[CJ]-11863
- EAN4714522744705
