Description

General Description

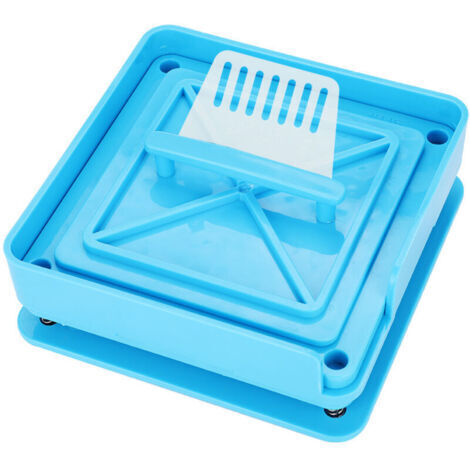

The FLITI 100-hole capsule filler is an innovative solution for the efficient filling of capsules. It was specifically developed to solve the problem of capsule filling, especially when processing small batches, in pharmacies, laboratories, and for home use. This capsule filler allows you to fill up to 100 capsules quickly and precisely at once.

Technical Data

  • Condition: 100% New
  • Item Type: Capsule Filler
  • Product Material: Plastic
  • Color: Blue
  • Number of Holes: 100
  • Suitable for Capsule Type: 0#
  • Plate Size: Approx. 16.6 x 16.6 cm / 6.5 x 6.5 in
  • Package Weight: Approx. 816 g

Compatibility and Accessories

  • Suitable for size 0# capsules, with a cap length of 10.7–11 mm and a body length of 18.2–18.5 mm.
  • Package Contents: 1 x Alignment Plate, 1 x Body plate, 1 x middle plate, 1 x cap plate, 1 x powder compression plate, 1 x force distributor, 1 x handle.

Installation

The capsule filler is installed in several simple steps:

  1. Load the capsule body and lay the body plate flat.
  2. Place the arrangement plate frame on the body plate.
  3. Place approximately 100 capsules in the frame.
  4. Rotate the plate body and the arrangement wheel.
  5. The capsule bodies will fall individually into the plate opening, then pour in the excess capsule body.
  6. Take the wheel arrangement plate and set aside the capsule body installed on the plate.
  7. Fill powder into the capsule body.
  8. Scave the plate back and forth on the body when the capsule body is filled with powder. is.
  9. Use the powder press plate to fill the capsule plate and fill the capsules.
  10. Scrape off the excess powder from the plate.
  11. Flip over the cap plate and middle plate to cover the body plate.
  12. Lock the capsule body and cap.
  13. Remove the cap plate.
  14. Remove the middle plate and fill the capsule from the locking middle plate.

Application

The capsule filler is ideal for:

  • Small factories
  • Pharmacies
  • Sample rooms
  • Laboratories
  • Hospital compounding departments
  • Families who want to make their own capsules

Caractéristiques

  • Marque
    ELLE
  • Couleur
    Bleu
  • Réf. ManoMano
    ME211205156
  • MMID
    240646429705
  • Réf. fabricant
    SZJ-0000121
